1500VAC 50Hz 5mA/1S Induction Motor Y97125

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	115
Rated Speed	Rpm	1600
Input Power	W	70
Rated Current	A	0.6
Rated Frequency	Hz	60
Capacitance	μF	7
Weight of Motor	Kg	2.45
Motor Length	mm	125

1500VAC 50Hz 5mA/1S Induction Motor Y97125

The Single Phase Induction Motor Y97125 is an electric motor powered by a single-phase AC power supply. It features a compact structure and reliable operation. It employs capacitors for starting or ru...

পণ্যের পরামিতি

×

Single Phase Induction Motor Y124125

তদন্ত পাঠান

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	115
Rated Speed	Rpm	1075
Input Power	W	185
Rated Current	A	3.2
Rated Frequency	Hz	60
Capacitance	μF	20
Weight of Motor	Kg	5.15
Motor Length	mm	125

Single Phase Induction Motor Y124125

The Single Phase Induction Motor Y124125 is a high-performance single-phase electric motor designed for applications requiring efficient and stable power output. It employs advanced manufacturing proc...

পণ্যের পরামিতি

×

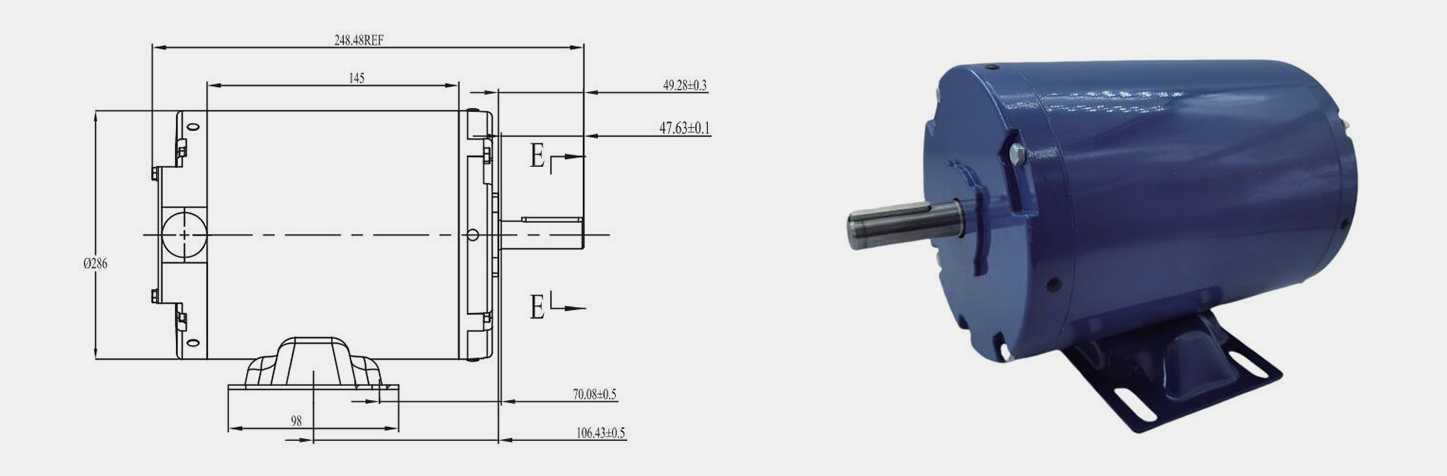

High-power Single Phase Electric Induction Motor Y286145

তদন্ত পাঠান

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	230
Rated Speed	Rpm	1083
Input Power	W	374
Rated Current	A	1.66
Rated Frequency	Hz	60
Capacitance	μF	10
Weight of Motor	Kg	7.2
Motor Length	mm	200

High-power Single Phase Electric Induction Motor Y286145

The Single Phase Induction Motor Y286145 is a high-power single-phase electric motor designed for applications requiring high torque and continuous power output. It features a heavy-duty design capabl...

পণ্যের পরামিতি

×

68ZYT 68mm brushed dc motor

তদন্ত পাঠান

Features:

Double-insulated windings prevent breakdown

8mm large shaft diameter resists torsion

IP54-rated dust/water protection

68ZYT 68mm brushed dc motor

Definition: Heavy-duty motor with reinforced bearings and shaft structure, capable of 200% instantaneous overload.

পণ্যের পরামিতি

×

80 ZYT 82ZYT 80mm 82mm brushed dc motor

তদন্ত পাঠান

Features:

No-load speed up to 6000 RPM

Temperature sensor enables real-time overheating protection

82mm version supports dual shaft output

80 ZYT 82ZYT 80mm 82mm brushed dc motor

Definition: High-speed responsive motor with embedded temperature sensor for precision control.

পণ্যের পরামিতি
